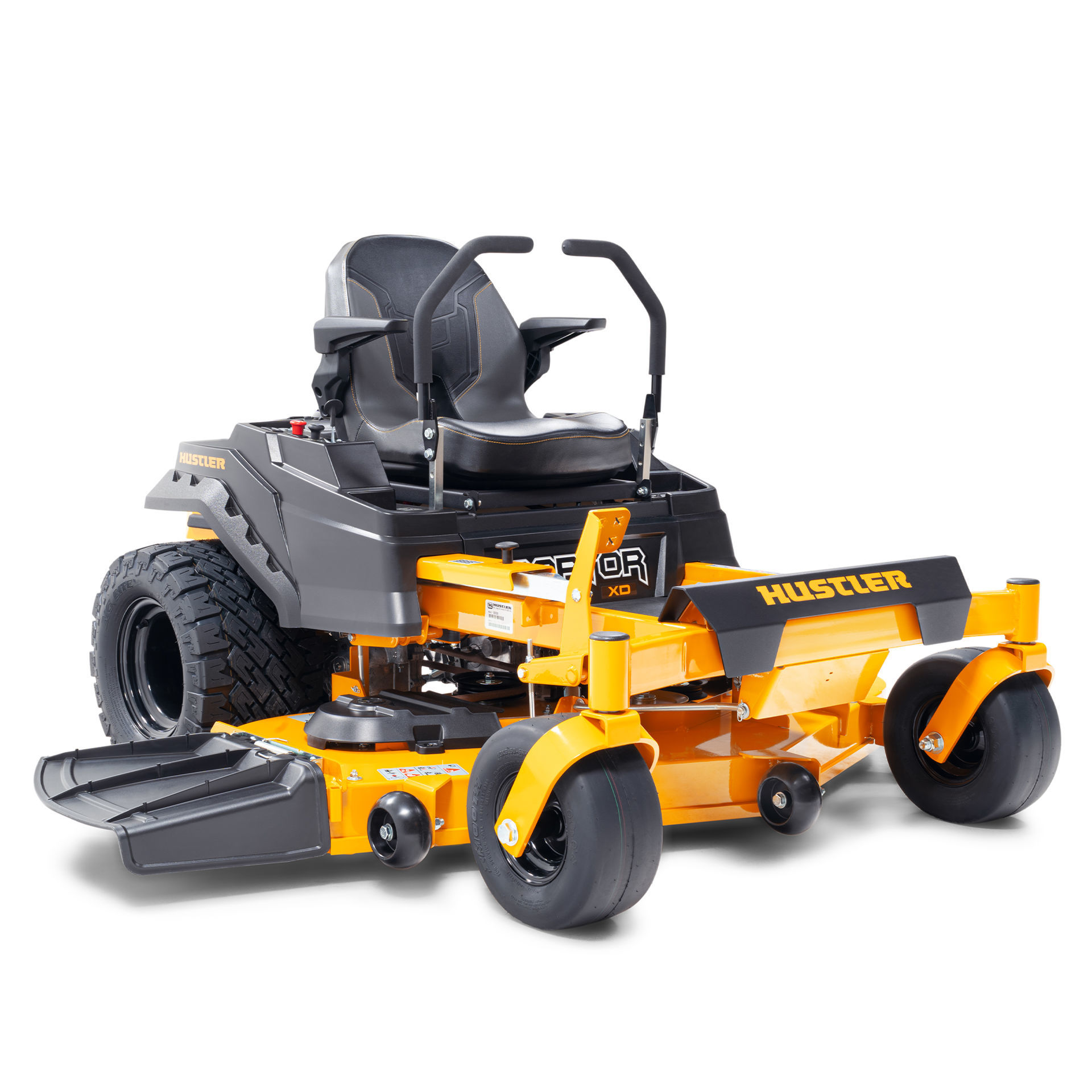

HUSTLER RAPTOR XD 48'' ZERO TURN MOWER

Price: $9,999.00

Old price: $11,399.00

The New Raptor® XD is a low profile, heavy-duty premium residential zero-turn mower. With an all new wider stance and single fully welded frame, this machine is built like a tank, but drives like a sports car. Featuring all the exclusives that you can only find on a Hustler machine, the Raptor® XD is a hard act to beat!

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews
Contact Us

Domestic Warranty
3 Year - 300 Hour Domestic
Commercial Warranty
3 Year - 300 Hour Commercial
Engine (cc)
726 cc
Engine
Kawasaki FR651V
Horsepower
21.5 hp (16.0kW) @ 3600 rpm (Please Note: Horsepower rating as tested to SAE J1995 Standards.)
Fuel Capacity
11.36 L
Blade Length
42cm x 3 Blades
Dry Weight
284kg
Fuel
Unleaded (see engine manufacturers specifications)
Drive System
Dual hydrostatic. Hydro-Gear ZT2800 integrated hydrostatic zero-turn transaxles
Ground Speed - Forward
Infinitely variable 0-12.1km/h
Ground Speed - Reverse
0-6.4 km/h
Brakes
Hydrostatic dynamic braking. Parking: Patented automatic park brake system.
Caster Tyres
13 x 6.5 , smooth tread
Tyres - Drive
Exclusive 20 x 8 - 10 BigBite™ tyre
Seat
Premium bolstered high-back seat with armrests and built-in lumbar support
Hour Meter
Standard
ROPS
**No ROPS**
Seat Suspension
Seat suspension springs are standard
Height
111cm
Width
133cm (with discharge chute raised)
Width (tyre-to-tyre)
107cm
Deck System
Side-Discharge: 48" cut. 3 Blades, deck is suspended at two points at the rear and two in front. Includes deck-mounted anti-scalp wheel(s) to improve flotation in rolling and uneven terrain.
Cutting Widths
48" (122cm)
Deck Lift
Foot Operated 4 point deck lift system
Deck Construction
11 ga, 3.0 mm welded steel with 7 ga, 4.5 mm support plate double welded onto spindle mount areas. Solid 9.5 mm x 25.4 mm steel bars reinforce impact areas on trim edges. Steel deck housing is 114.3 mm deep to provide room for high-capacity mowing.
Cutting Height(s)
1.5" (3.8cm) to 4.5" (11.5cm) in 1/4" (6mm) increments
Blade(s)
3 x Heavy-duty, heat treated blades. 20.5" X 2.50 X .20"
Blade Tip Speed
18,500 fpm
Discharge Chute
High density, rubberised
Transmission
Hydro-Gear ZT2800
Kit - Mulch
Not Standard - Available Option
Grass Catcher
Not Standard - Accessory Available
Length
176cm
