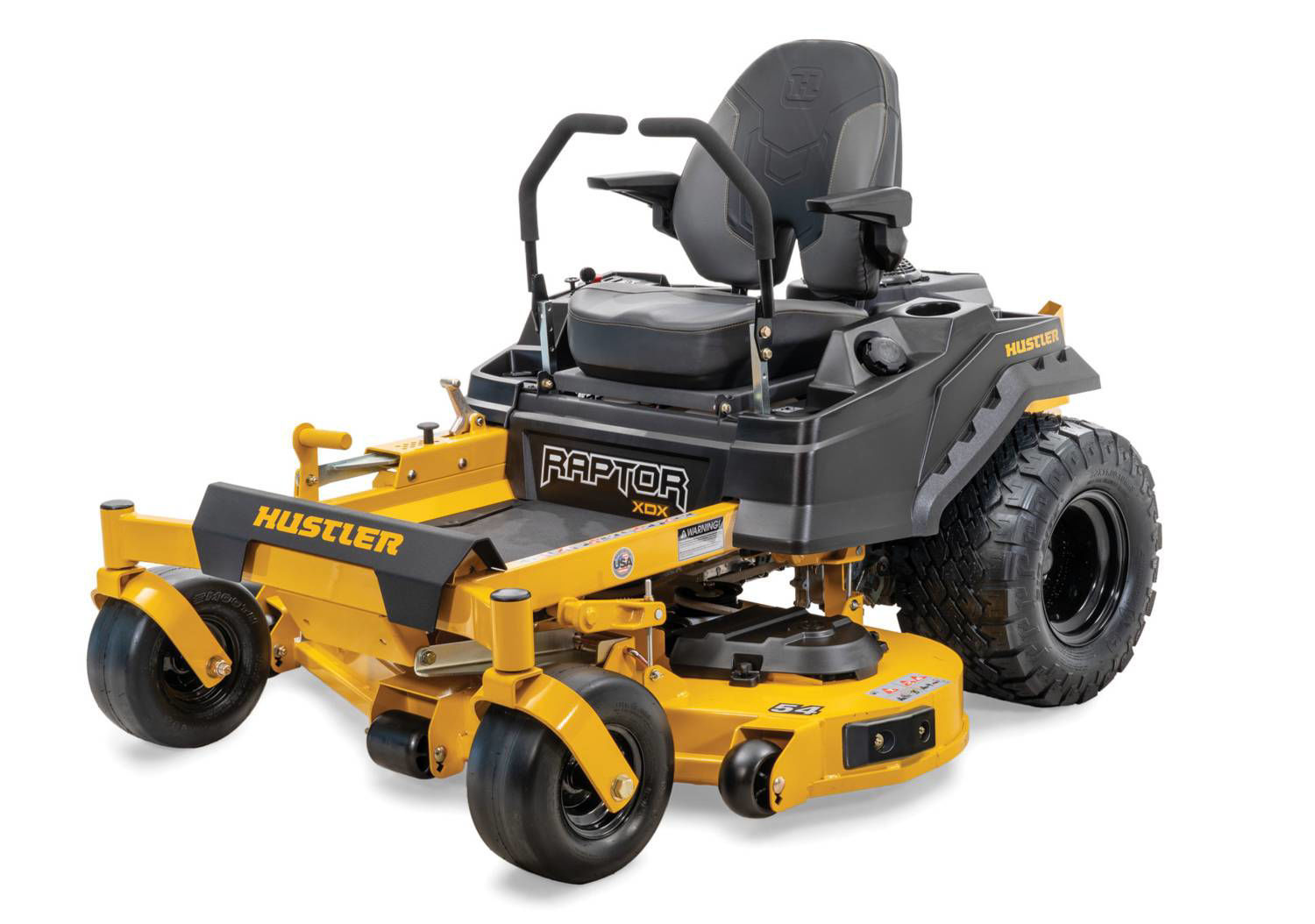

HUSTLER RAPTOR XDX 60''

$13,999.00
$14,699.00
The NEW Raptor XDX combines the best features of the commercial grade Fastrak into the body of a Raptor, giving you the best of both worlds at a price that won't break the bank. With a deep 5" cutting deck, commercial grade spindles, and big commercial Hydrogear 3100 hydrostatic drives, this machine is just as much at home on the trailer of the landscape contractor as it is in the astute home owners garage. FEATURES Commercial grade 10ga. welded steel deck w' leading edge deck reinforcement w' Commercial duty sealed deck spindles.Fabricated one piece chassis. Not bolt together! Toughest frame, front forks, and deck in class.Reliable industry leading Kawasaki FR Series V-Twin FR730V engine.SmoothTrak™ steering with a patented automatic park brake system.Premium Twin Hydro Gear ZT3100 integrated serviceable commercial duty hydro's.Superior Bolstered extra High-Back seat with armrests and built in lumbar support.Hustler Exclusive 22" BigBite™ drive tyres and 13" caster tyres.12.5 km p/h forward ground speed.Beautiful quality of cut. Your lawn will be the envy of the neighbourhood.Flip up floor pan and removeable seat pan plus Tool-less removable pulley covers for easy maintenance.
  • Domestic Warranty

    3 Year or 400 hour Domestic Warranty
  • Commercial Warranty

    3 Year or 400 hour Commercial Warranty
  • Engine (cc)

    726 cc
  • Engine

    Kawasaki FR730V
  • Horsepower

    24.0hp (Please Note: Horsepower rating as tested to SAE J1995 Standards.)
  • Fuel Capacity

    11.4 L
  • Blade Length

    52cm x 3 Blades
  • Dry Weight

    323 kg
  • Fuel

    Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
  • Drive System

    Dual hydrostatic. Commercial-duty Hydro-Gear ZT3100
  • Ground Speed - Forward

    Infinitely variable 0-12.5 km/h
  • Ground Speed - Reverse

    0-8 km/h
  • Brakes

    In Service: Hydrostatic dynamic braking. Parking: Internal transmission mechanical brake. When steering levers are placed in neutral position, integral park brakes are automatically engaged
  • Caster Tyres

    13 x 6.5, smooth tread
  • Tyres - Drive

    Exclusive 22 x 11 - 10 BigBite™ tyre
  • Seat

    Superior Bolstered extra High-Back seat with armrests and built in lumbar support.
  • Hour Meter

    Standard
  • ROPS

    No ROPS
  • Seat Suspension

    Spring suspension
  • Height

    111cm
  • Width

    158cm (with discharge chute raised)
  • Width (tyre-to-tyre)

    123cm
  • Deck System

    Side-Discharge: 60" cut. Free-floating deck using three blades with centre blade to the front. Deck is suspended at the corners. Includes 3 deck-mounted rollers to improve flotation in rolling and uneven terrain.
  • Cutting Widths

    60” (1524 mm) cut side discharge
  • Deck Lift

    Foot-operated deck height adjustment in 6 mm increments from 38.1 mm to 114.3 mm.
  • Deck Construction

    10 ga, .135” (3.4 mm) welded steel with 11 ga, .120" (3.0 mm) doubler welded onto spindle mount areas. Solid 11ga. steel bars reinforce impact areas on trim edges. Commercial-style box-section reinforced front edge.
  • Cutting Height(s)

    Magnetic Pin for setting cut height
  • Blade(s)

    (3) Heavy-duty, heat treated, blades. 16.50" x 2.50" x .20"
  • Blade Tip Speed

    18,400 fpm
  • Discharge Chute

    High density, rubberised.
  • Transmission

    Hydro-Gear ZT3100
  • Kit - Mulch

    Not Standard - Available Option
  • Grass Catcher

    Not Standard - Accessory Available
  • Length

    181cm
